Laboratory Equipment

Information:

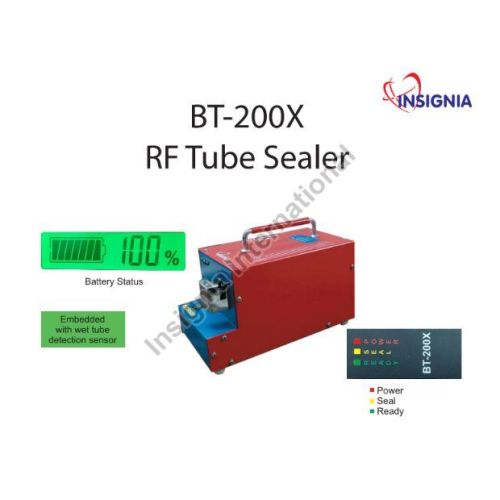

• Produces Hermetic Seal & suitable for all types of Blood Bag Tubes.
• Radio Frequency Sealing, safety splash guard.
• Heavy Duty Bench Top Sealer, with wet tube & leakage detection.
• 40.68 Mhz / 20 Watt. Power, no warm up time required.
• Easy Access to Electrodes for Cleaning.
• Weight 5 kgs (approx)
• Battery Backup (>500 sealing) optional.

We are engaged in the manufacturing and supplying of a very efficient Electronic Counter Balance. An Electronic Counter Balance is used for the accurate measurement of blood. The Electronic Counter Balance, provided by us, runs on electricity and is very efficient. We provide several helpful features in our range of Electronic Counter Balance.

Details

• Two buckets measures separately
• Weight measure up to 2500 gm. (accuracy +2gms)
• One LCD graphical display
• Balanced weight Audio & Visual alarm
• Built in taring switch
• Built in calibration port

Highlights

• Two Buckets measures separately
• weight measure upto 2500 gms. (accuracy + 2gms.)
• One LCD graphical display
• balanced weight audio & visual alarm
• Taring switch built in
• Calibration port built in

Details :

• Mechanical Accessory for Transferring of Plasma to the satellite bags.
• Suitable to extract blood components (Plasma and platelets) from all types of Blood Bag systems available in the market.
• Front panel spring loaded o exert uniform pressure on plastic blood bags for transfer of blood components.
• Compression plate made of durable transparent acrylic material 8 mm thick.
• Metal used for equipment non-corrosive and can be cleaned with disinfectant.
• Base and vertical portion of the equipment body powder coated and sturdy enough to hold the blood bags in vertical position.
• Compartment provided at the back to contain satellite bags.
  Storage Box built in to contain clips & other accessories.
• Light embedded in the acrylic plate to ensure a view of complete transfer of plasma (Optional).

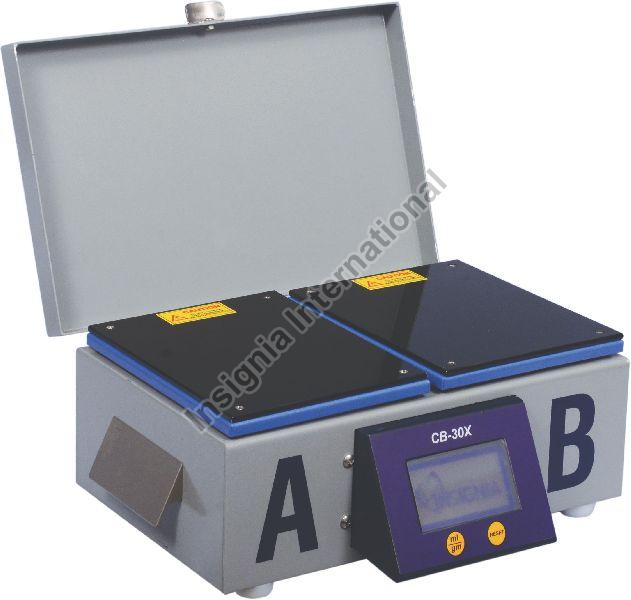

CENTRIFUGE BALANCE CB-30X is a specially designed electronic differential scale for a particular use in a Blood Bank. It measures two weights simultaneously and displays individual weight with-in-seconds. The first step in plasma separation from the whole blood is loading of blood bags in high speed centrifuge machine. Before loading the blood bags, the weights of the two loads (each blood bag + bucket) have to be balanced in such a way that their weights should be the same or very close to each other. This is a vital step of plasma separation process to save expensive centrifuge machine. By conventional methods the process of balancing is time consuming, inaccurate and cumbersome. CB-30X makes whole process of balancing with-in-few seconds with high accuracy. The only way to save expensive centrifuge machine from damage, resulting out of imbalanced, buckets.

SPECIFICATIONS :

• Has two independent weight sensors, which displays individual weight of each bucket with high degree of accuracy.
• Individual display monitor to display the weight of each bucket with blood bags.
• Accurate LED weight indicator gets ON as soon as the two plates get balanced. This can be achieved early by adding few weight chips to the lighter side.
• One Graphical LCD display as standard
• Power 220-240 VAC. (Power adapter used)
• Balanced weight Alarm
• Accurate, simple and easy to use
• SMPS Power Supply.
• Two Buckets measures separately.
• Weight measure upto 3000 gms. & volume measure upto 3000 ml. (accuracy +2gms.)
• One LCD display.
• Balanced weight Audio & Visual alarm.
• Taring Switch Built in.
• Calibration Port Built in.
• Protective cover to safe gaurd accidental extra weight.

System Description : Comes with a soft fluorescent, glare-free light that provides excellent uniform slide illumination and a temperature indicator that easily and accurately monitors the viewing area and regulates the temperature to compensate for ambient temperature changes (range 45° C to 50° C). Has a built-in temperature indicator for easy and accurate monitoring of the viewing area. Slides can reach a temperature of 37° C to 39° C in 2 - 5 minutes, depending on ambient eliminating heating-up time. The viewing area temperature automatically adjusts for any ambient temperature. Housing, pivotally supported in a frame. Meets the Rh slide test standards set by the AABB.

Applications :

• Blood typing.
• Rh determinations.
• Warming slides for Gram's strain.
• Tissue typing.
• Reading enzyme antibody screens in microplates.

Specifications :

• Built-in temperature indicator for easy, accurate monitoring of viewing area.
• Viewing area temperature adjusts easily to compensate for ambient temperature changes. (Range : 35° C to 37°C)
• Rh slide reaches temperature of 37° in five minutes, eliminating wasted heat up time.
• Soft, fluorescent, glare-free light provides uniform illumination of slide contents.
• View box can be gently rocked using large knob on support cradle.
• Sturdy, easy-to-clean Metallic Powder compact case.
• Utilizes minimal bench space.
• Meets Rh slide test standards set by the AABB.
• Unit conveniently includes three-wire cord and plug.
• Blood typing
• Rh determinations
• Warming slides for gram-strain
• Tissue typing
• Reading enzyme antibody screens in microplate
• Compact Slide-Warmer
• Soft, L.E.D., glare-free light
• Built-in temperature indicator & control
• Light intensity 5000 Lux.
